Lee Spring LHL 1250B 05 is a heavy-duty die compression spring from the HEFTY™ Die Spring series, specifically engineered for demanding industrial applications requiring durabiliy and substantial load capacity. This spring features an 1.165-inch outside diameter (29.59 mm) with a 1.25-inch hole diameter (31.75 mm) and extends to a free length of 3 inch (76.2 mm), making it ideal for stamping and die applications. Made from Oil Tempered Chrome Silicon with a 0.207-inch wire diameter (5.26 mm), the spring delivers a spring rate of 430 lb/inch (75.307 N/mm) through its 6.98 active coils out of 8.98 total coils, with Factory Option wind for predictable deflection behavior. The spring compresses to a solid height of 1.865 inch (47.37 mm) while supporting a maximum load of 488.1 lb (2171.18 N) at full compression. The spring has Squared and Ground ends and a Purple Powder Coat finish for optimal die spring performance.

About the HEFTY™ Die Spring Series

HEFTY™ Die Springs offer you the economy of round wire and the durability of chrome silicon or music wire ideally suited for any high stress, heavy load application. Great for many applications such as clutches, brakes, farm machinery and aircraft mechanisms. Available in five different types with different load ratings to fit standard diameters.

HEFTY™ Die Spring Compression Springs have useful applications in various industries, including:

  • Medical devices
  • Firearms
  • Pharmaceutical delivery devices
  • Lighting and electrical control
  • Petro-chemical processes
  • Communication devices
  • Aerospace
  • Testing and measurement equipment
  • Marine applications
  • Automotive
  • Locks and security devices
  • Precision Instruments
  • Hardware

...and many more applications

417921
Product Compression OD 1.165 in, Length 3 in, Oil Tempered Chrome Silicon
Product Compression OD 29.59 mm, Length 76.2 mm, Oil Tempered Chrome Silicon
Part Number LHL 1250B 05
Series HEFTY™ Die Spring
Outside Diameter (inch) 1.165
Outside Diameter (cm) 2.959
Outside Diameter (mm) 29.59
Hole Diameter (inch) 1.25
Hole Diameter (cm) 3.175
Hole Diameter (mm) 31.75
Rod Diameter (inch) 0.625
Rod Diameter (cm) 1.588
Rod Diameter (mm) 15.88
Free Length (inch) 3
Free Length (cm) 7.62
Free Length (mm) 76.2
Rate (gm/mm) 7678.94
Rate (kg/cm) 76.789
Rate (kg/mm) 7.6789
Rate (lb/inch) 430
Rate (gm/cm) 76789.4
Rate (N/cm) 753.07
Rate (N/mm) 75.307
Solid Height (inch) 1.865
Solid Height (cm) 4.737
Solid Height (mm) 47.37
Wire Diameter (inch) 0.207
Wire Diameter (cm) 0.526
Wire Diameter (mm) 5.26
Material Oil Tempered Chrome Silicon
Load at Solid Height (gm) 221402
Load at Solid Height (kg) 221.402
Load at Solid Height (lb) 488.1
Load at Solid Height (N) 2171.18
Ends Squared and Ground
Active Coils 6.98
Direction of Wind Factory Option
Finish Purple Powder Coat
Total Coils 8.98
0.207 1.165 0.001 0.001 1.25 0.625 3 0.105 8.98 430 43 1.865 488.1 0.207 3 1.165 5.26 29.59 0.04 31.75 15.88 76.2 2.667 75.307 47.37 2171.18

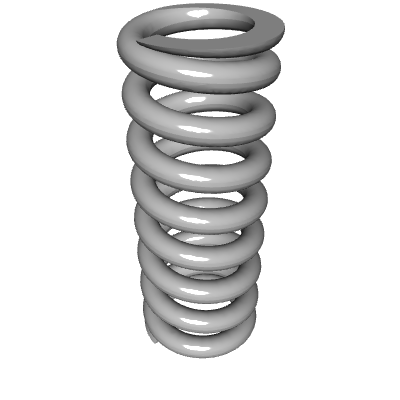

Default View

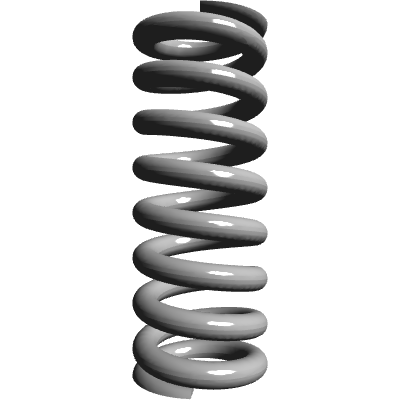

Side view

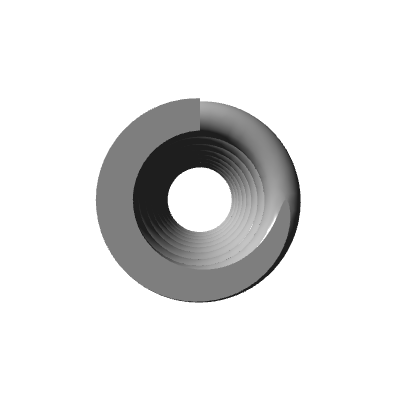

Top view
