Model Code
LHL

HEFTY™ Die Spring Compression Springs

Heavy Duty Compression Springs

Lee Spring LHL 1250B 01 is a heavy-duty die compression spring from the HEFTY™ Die Spring series, specifically engineered for demanding industrial applications requiring durabiliy and substantial load capacity. This spring features an 1.2-inch outside diameter (30.48 mm) with a 1.25-inch hole diameter (31.75 mm) and extends to a free length of 1.5 inch (38.1 mm), making it ideal for stamping and die applications. Made from Oil Tempered Chrome Silicon with a 0.195-inch wire diameter (4.95 mm), the spring delivers a spring rate of 725 lb/inch (126.971 N/mm) through its 2.82 active coils out of 4.82 total coils, with Factory Option wind for predictable deflection behavior. The spring compresses to a solid height of 0.945 inch (24 mm) while supporting a maximum load of 402.4 lb (1789.96 N) at full compression. The spring has Squared and Ground ends and a Purple Powder Coat finish for optimal die spring performance.

About the HEFTY™ Die Spring Series

HEFTY™ Die Springs offer you the economy of round wire and the durability of chrome silicon or music wire ideally suited for any high stress, heavy load application. Great for many applications such as clutches, brakes, farm machinery and aircraft mechanisms. Available in five different types with different load ratings to fit standard diameters.

HEFTY™ Die Spring Compression Springs have useful applications in various industries, including:

  • Medical devices
  • Firearms
  • Pharmaceutical delivery devices
  • Lighting and electrical control
  • Petro-chemical processes
  • Communication devices
  • Aerospace
  • Testing and measurement equipment
  • Marine applications
  • Automotive
  • Locks and security devices
  • Precision Instruments
  • Hardware

...and many more applications

417881
Product Compression OD 1.2 in, Length 1.5 in, Oil Tempered Chrome Silicon
Product Compression OD 30.48 mm, Length 38.1 mm, Oil Tempered Chrome Silicon
Part Number LHL 1250B 01
Series HEFTY™ Die Spring
Outside Diameter (inch) 1.2
Outside Diameter (cm) 3.048
Outside Diameter (mm) 30.48
Hole Diameter (inch) 1.25
Hole Diameter (cm) 3.175
Hole Diameter (mm) 31.75
Rod Diameter (inch) 0.625
Rod Diameter (cm) 1.588
Rod Diameter (mm) 15.88
Free Length (inch) 1.5
Free Length (cm) 3.81
Free Length (mm) 38.1
Rate (gm/mm) 12947
Rate (kg/cm) 129.471
Rate (kg/mm) 12.9471
Rate (lb/inch) 725
Rate (gm/cm) 129470
Rate (N/cm) 1269.71
Rate (N/mm) 126.971
Solid Height (inch) 0.945
Solid Height (cm) 2.4
Solid Height (mm) 24
Wire Diameter (inch) 0.195
Wire Diameter (cm) 0.495
Wire Diameter (mm) 4.95
Material Oil Tempered Chrome Silicon
Load at Solid Height (gm) 182529
Load at Solid Height (kg) 182.529
Load at Solid Height (lb) 402.4
Load at Solid Height (N) 1789.96
Ends Squared and Ground
Active Coils 2.82
Direction of Wind Factory Option
Finish Purple Powder Coat
Total Coils 4.82
0.195 1.2 0.001 0.001 1.25 0.625 1.5 0.048 4.82 725 72.5 0.945 402.4 0.195 1.5 1.2 4.95 30.48 0.04 31.75 15.88 38.1 1.219 126.971 24 1789.96

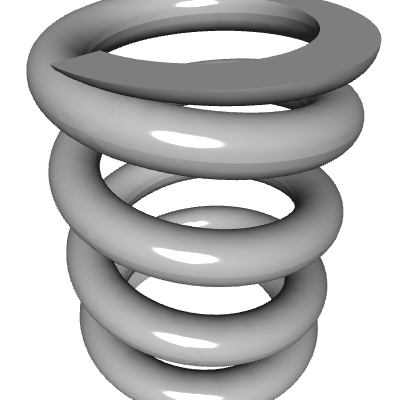

Default View

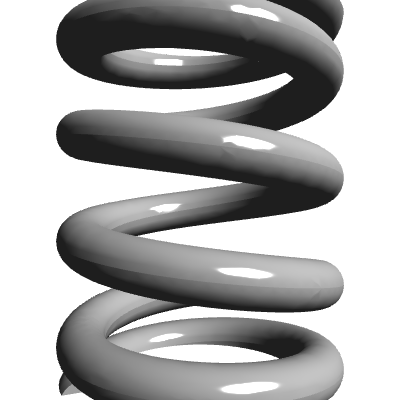

Side view

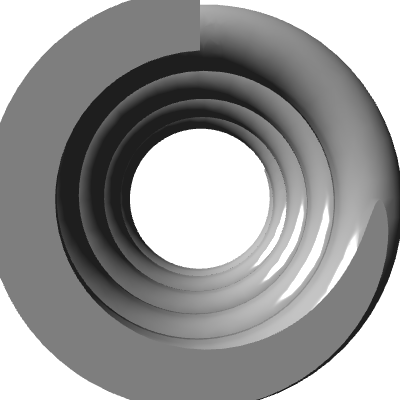

Top view
Quantity Price
1 - 24 $8.960
25 - 49 $7.590
50 - 99 $6.420
100 - 199 $5.440
200 - 299 $4.481
300 - 399 $4.097
400 - 499 $3.757
500 $3.467
