HEFTY™ Die Spring Compression Springs

Heavy Duty Compression Springs

Lee Spring LHL 1250AB 06 is a heavy-duty die compression spring from the HEFTY™ Die Spring series, specifically engineered for demanding industrial applications requiring durabiliy and substantial load capacity. This spring features an 1.17-inch outside diameter (29.72 mm) with a 1.25-inch hole diameter (31.75 mm) and extends to a free length of 3.5 inch (88.9 mm), making it ideal for stamping and die applications. Made from Oil Tempered Chrome Silicon with a 0.192-inch wire diameter (4.88 mm), the spring delivers a spring rate of 247 lb/inch (43.258 N/mm) through its 8.46 active coils out of 10.45 total coils, with Factory Option wind for predictable deflection behavior. The spring compresses to a solid height of 2.07 inch (52.58 mm) while supporting a maximum load of 353.2 lb (1571.11 N) at full compression. The spring has Squared and Ground ends and a Beige Powder Coat finish for optimal die spring performance.

About the HEFTY™ Die Spring Series

HEFTY™ Die Springs offer you the economy of round wire and the durability of chrome silicon or music wire ideally suited for any high stress, heavy load application. Great for many applications such as clutches, brakes, farm machinery and aircraft mechanisms. Available in five different types with different load ratings to fit standard diameters.

HEFTY™ Die Spring Compression Springs have useful applications in various industries, including:

  • Medical devices
  • Firearms
  • Pharmaceutical delivery devices
  • Lighting and electrical control
  • Petro-chemical processes
  • Communication devices
  • Aerospace
  • Testing and measurement equipment
  • Marine applications
  • Automotive
  • Locks and security devices
  • Precision Instruments
  • Hardware

...and many more applications

417821
Product Compression OD 1.17 in, Length 3.5 in, Oil Tempered Chrome Silicon
Product Compression OD 29.72 mm, Length 88.9 mm, Oil Tempered Chrome Silicon
Part Number LHL 1250AB 06
Series HEFTY™ Die Spring
Outside Diameter (inch) 1.17
Outside Diameter (cm) 2.972
Outside Diameter (mm) 29.72
Hole Diameter (inch) 1.25
Hole Diameter (cm) 3.175
Hole Diameter (mm) 31.75
Rod Diameter (inch) 0.625
Rod Diameter (cm) 1.588
Rod Diameter (mm) 15.88
Free Length (inch) 3.5
Free Length (cm) 8.89
Free Length (mm) 88.9
Rate (gm/mm) 4410.93
Rate (kg/cm) 44.109
Rate (kg/mm) 4.4109
Rate (lb/inch) 247
Rate (gm/cm) 44109.3
Rate (N/cm) 432.58
Rate (N/mm) 43.258
Solid Height (inch) 2.07
Solid Height (cm) 5.258
Solid Height (mm) 52.58
Wire Diameter (inch) 0.192
Wire Diameter (cm) 0.488
Wire Diameter (mm) 4.88
Material Oil Tempered Chrome Silicon
Load at Solid Height (gm) 160212
Load at Solid Height (kg) 160.212
Load at Solid Height (lb) 353.2
Load at Solid Height (N) 1571.11
Ends Squared and Ground
Active Coils 8.46
Direction of Wind Factory Option
Finish Beige Powder Coat
Total Coils 10.45
0.192 1.17 0.001 0.001 1.25 0.625 3.5 0.125 10.45 247 24.7 2.07 353.2 0.192 3.5 1.17 4.88 29.72 0.04 31.75 15.88 88.9 3.175 43.258 52.58 1571.11

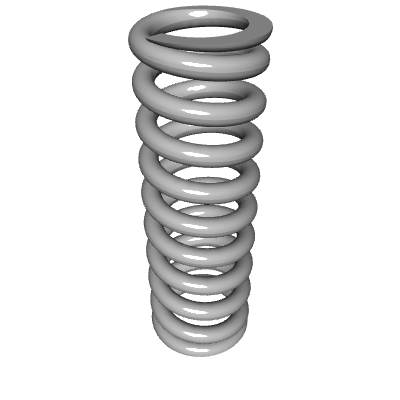

Default View

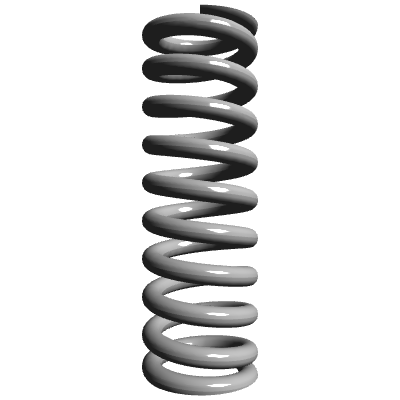

Side view
Top view
Quantity Price
1 - 24 $11.710
25 - 49 $10.310
50 - 99 $9.190
100 - 199 $7.860
200 - 299 $6.033
300 - 399 $5.513
400 - 499 $5.056
500 $4.665
