Model Code
LHL

HEFTY™ Die Spring Compression Springs

Heavy Duty Compression Springs

Lee Spring LHL 1000D 08 is a heavy-duty die compression spring from the HEFTY™ Die Spring series, specifically engineered for demanding industrial applications requiring durabiliy and substantial load capacity. This spring features an 0.965-inch outside diameter (24.51 mm) with a 1-inch hole diameter (25.4 mm) and extends to a free length of 5 inch (127 mm), making it ideal for stamping and die applications. Made from Oil Tempered Chrome Silicon with a 0.207-inch wire diameter (5.26 mm), the spring delivers a spring rate of 395 lb/inch (69.178 N/mm) through its 15.34 active coils out of 17.34 total coils, with Factory Option wind for predictable deflection behavior. The spring compresses to a solid height of 3.48 inch (88.39 mm) while supporting a maximum load of 600.4 lb (2670.71 N) at full compression. The spring has Squared and Ground ends and a Orange Powder Coat finish for optimal die spring performance.

About the HEFTY™ Die Spring Series

HEFTY™ Die Springs offer you the economy of round wire and the durability of chrome silicon or music wire ideally suited for any high stress, heavy load application. Great for many applications such as clutches, brakes, farm machinery and aircraft mechanisms. Available in five different types with different load ratings to fit standard diameters.

HEFTY™ Die Spring Compression Springs have useful applications in various industries, including:

  • Medical devices
  • Firearms
  • Pharmaceutical delivery devices
  • Lighting and electrical control
  • Petro-chemical processes
  • Communication devices
  • Aerospace
  • Testing and measurement equipment
  • Marine applications
  • Automotive
  • Locks and security devices
  • Precision Instruments
  • Hardware

...and many more applications

417601
Product Compression OD 0.965 in, Length 5 in, Oil Tempered Chrome Silicon
Product Compression OD 24.51 mm, Length 127 mm, Oil Tempered Chrome Silicon
Part Number LHL 1000D 08
Series HEFTY™ Die Spring
Outside Diameter (inch) 0.965
Outside Diameter (cm) 2.451
Outside Diameter (mm) 24.51
Hole Diameter (inch) 1
Hole Diameter (cm) 2.54
Hole Diameter (mm) 25.4
Rod Diameter (inch) 0.5
Rod Diameter (cm) 1.27
Rod Diameter (mm) 12.7
Free Length (inch) 5
Free Length (cm) 12.7
Free Length (mm) 127
Rate (gm/mm) 7053.91
Rate (kg/cm) 70.539
Rate (kg/mm) 7.0539
Rate (lb/inch) 395
Rate (gm/cm) 70539.1
Rate (N/cm) 691.78
Rate (N/mm) 69.178
Solid Height (inch) 3.48
Solid Height (cm) 8.839
Solid Height (mm) 88.39
Wire Diameter (inch) 0.207
Wire Diameter (cm) 0.526
Wire Diameter (mm) 5.26
Material Oil Tempered Chrome Silicon
Load at Solid Height (gm) 272341
Load at Solid Height (kg) 272.341
Load at Solid Height (lb) 600.4
Load at Solid Height (N) 2670.71
Ends Squared and Ground
Active Coils 15.34
Direction of Wind Factory Option
Finish Orange Powder Coat
Total Coils 17.34
0.207 0.965 0.001 0.001 1 0.5 5 0.175 17.34 395 39.5 3.48 600.4 0.207 5 0.965 5.26 24.51 0.04 25.4 12.7 127 4.445 69.178 88.39 2670.71

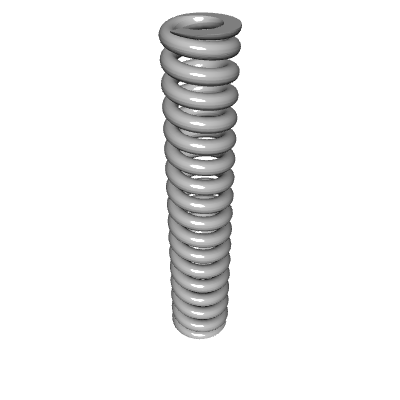

Default View
Side view

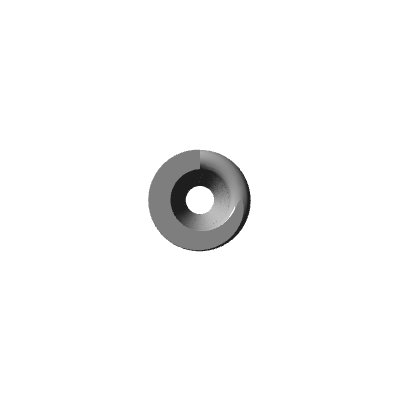

Top view
