HEFTY™ Die Spring Compression Springs

Heavy Duty Compression Springs

Lee Spring LHL 1000D 04 is a heavy-duty die compression spring from the HEFTY™ Die Spring series, specifically engineered for demanding industrial applications requiring durabiliy and substantial load capacity. This spring features an 0.975-inch outside diameter (24.77 mm) with a 1-inch hole diameter (25.4 mm) and extends to a free length of 3 inch (76.2 mm), making it ideal for stamping and die applications. Made from Oil Tempered Chrome Silicon with a 0.207-inch wire diameter (5.26 mm), the spring delivers a spring rate of 700 lb/inch (122.593 N/mm) through its 8.32 active coils out of 10.32 total coils, with Factory Option wind for predictable deflection behavior. The spring compresses to a solid height of 2.15 inch (54.61 mm) while supporting a maximum load of 595 lb (2646.69 N) at full compression. The spring has Squared and Ground ends and a Orange Powder Coat finish for optimal die spring performance.

About the HEFTY™ Die Spring Series

HEFTY™ Die Springs offer you the economy of round wire and the durability of chrome silicon or music wire ideally suited for any high stress, heavy load application. Great for many applications such as clutches, brakes, farm machinery and aircraft mechanisms. Available in five different types with different load ratings to fit standard diameters.

HEFTY™ Die Spring Compression Springs have useful applications in various industries, including:

  • Medical devices
  • Firearms
  • Pharmaceutical delivery devices
  • Lighting and electrical control
  • Petro-chemical processes
  • Communication devices
  • Aerospace
  • Testing and measurement equipment
  • Marine applications
  • Automotive
  • Locks and security devices
  • Precision Instruments
  • Hardware

...and many more applications

417561
Product Compression OD 0.975 in, Length 3 in, Oil Tempered Chrome Silicon
Product Compression OD 24.77 mm, Length 76.2 mm, Oil Tempered Chrome Silicon
Part Number LHL 1000D 04
Series HEFTY™ Die Spring
Outside Diameter (inch) 0.975
Outside Diameter (cm) 2.477
Outside Diameter (mm) 24.77
Hole Diameter (inch) 1
Hole Diameter (cm) 2.54
Hole Diameter (mm) 25.4
Rod Diameter (inch) 0.5
Rod Diameter (cm) 1.27
Rod Diameter (mm) 12.7
Free Length (inch) 3
Free Length (cm) 7.62
Free Length (mm) 76.2
Rate (gm/mm) 12500.6
Rate (kg/cm) 125.006
Rate (kg/mm) 12.5006
Rate (lb/inch) 700
Rate (gm/cm) 125006
Rate (N/cm) 1225.93
Rate (N/mm) 122.593
Solid Height (inch) 2.15
Solid Height (cm) 5.461
Solid Height (mm) 54.61
Wire Diameter (inch) 0.207
Wire Diameter (cm) 0.526
Wire Diameter (mm) 5.26
Material Oil Tempered Chrome Silicon
Load at Solid Height (gm) 269892
Load at Solid Height (kg) 269.892
Load at Solid Height (lb) 595
Load at Solid Height (N) 2646.69
Ends Squared and Ground
Active Coils 8.32
Direction of Wind Factory Option
Finish Orange Powder Coat
Total Coils 10.32
0.207 0.975 0.001 0.001 1 0.5 3 0.105 10.32 700 70 2.15 595 0.207 3 0.975 5.26 24.77 0.04 25.4 12.7 76.2 2.667 122.593 54.61 2646.69

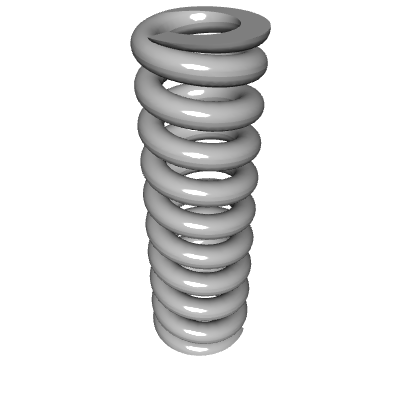

Default View

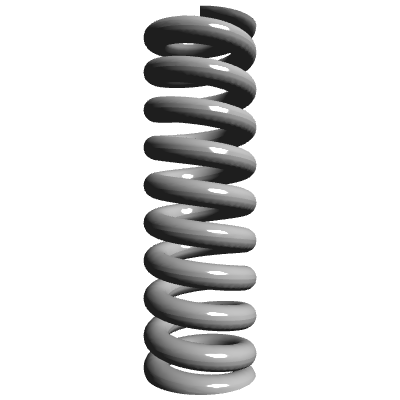

Side view

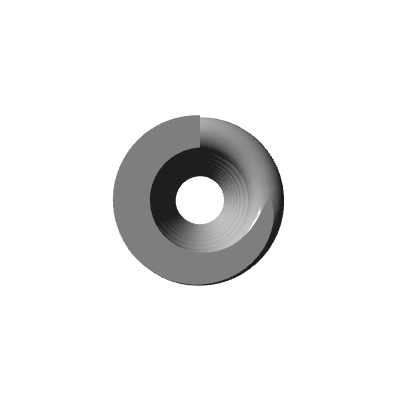

Top view
Quantity Price
1 - 24 $11.150
25 - 49 $9.930
50 - 99 $8.880
100 - 199 $7.620
200 - 299 $6.274
300 - 399 $5.733
400 - 499 $5.256
500 $4.849
