HEFTY™ Die Spring Compression Springs

Heavy Duty Compression Springs

Lee Spring LHL 1000D 03 is a heavy-duty die compression spring from the HEFTY™ Die Spring series, specifically engineered for demanding industrial applications requiring durabiliy and substantial load capacity. This spring features an 0.975-inch outside diameter (24.77 mm) with a 1-inch hole diameter (25.4 mm) and extends to a free length of 2.5 inch (63.5 mm), making it ideal for stamping and die applications. Made from Oil Tempered Chrome Silicon with a 0.207-inch wire diameter (5.26 mm), the spring delivers a spring rate of 860 lb/inch (150.614 N/mm) through its 6.78 active coils out of 8.77 total coils, with Factory Option wind for predictable deflection behavior. The spring compresses to a solid height of 1.83 inch (46.48 mm) while supporting a maximum load of 576.2 lb (2563.07 N) at full compression. The spring has Squared and Ground ends and a Orange Powder Coat finish for optimal die spring performance.

About the HEFTY™ Die Spring Series

HEFTY™ Die Springs offer you the economy of round wire and the durability of chrome silicon or music wire ideally suited for any high stress, heavy load application. Great for many applications such as clutches, brakes, farm machinery and aircraft mechanisms. Available in five different types with different load ratings to fit standard diameters.

HEFTY™ Die Spring Compression Springs have useful applications in various industries, including:

  • Medical devices
  • Firearms
  • Pharmaceutical delivery devices
  • Lighting and electrical control
  • Petro-chemical processes
  • Communication devices
  • Aerospace
  • Testing and measurement equipment
  • Marine applications
  • Automotive
  • Locks and security devices
  • Precision Instruments
  • Hardware

...and many more applications

417551
Product Compression OD 0.975 in, Length 2.5 in, Oil Tempered Chrome Silicon
Product Compression OD 24.77 mm, Length 63.5 mm, Oil Tempered Chrome Silicon
Part Number LHL 1000D 03
Series HEFTY™ Die Spring
Outside Diameter (inch) 0.975
Outside Diameter (cm) 2.477
Outside Diameter (mm) 24.77
Hole Diameter (inch) 1
Hole Diameter (cm) 2.54
Hole Diameter (mm) 25.4
Rod Diameter (inch) 0.5
Rod Diameter (cm) 1.27
Rod Diameter (mm) 12.7
Free Length (inch) 2.5
Free Length (cm) 6.35
Free Length (mm) 63.5
Rate (gm/mm) 15357.9
Rate (kg/cm) 153.579
Rate (kg/mm) 15.3579
Rate (lb/inch) 860
Rate (gm/cm) 153579
Rate (N/cm) 1506.14
Rate (N/mm) 150.614
Solid Height (inch) 1.83
Solid Height (cm) 4.648
Solid Height (mm) 46.48
Wire Diameter (inch) 0.207
Wire Diameter (cm) 0.526
Wire Diameter (mm) 5.26
Material Oil Tempered Chrome Silicon
Load at Solid Height (gm) 261364
Load at Solid Height (kg) 261.364
Load at Solid Height (lb) 576.2
Load at Solid Height (N) 2563.07
Ends Squared and Ground
Active Coils 6.78
Direction of Wind Factory Option
Finish Orange Powder Coat
Total Coils 8.77
0.207 0.975 0.001 0.001 1 0.5 2.5 0.088 8.77 860 86 1.83 576.2 0.207 2.5 0.975 5.26 24.77 0.04 25.4 12.7 63.5 2.235 150.614 46.48 2563.07

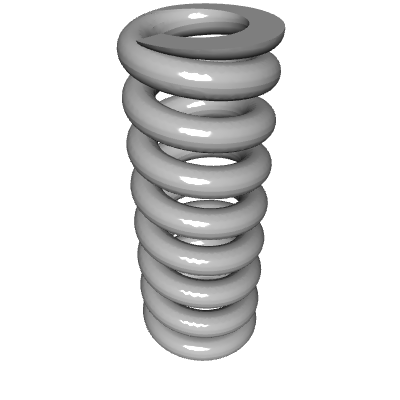

Default View

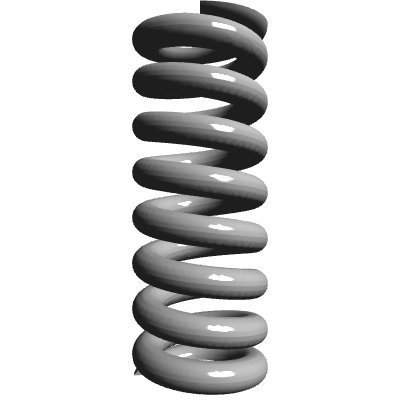

Side view
