Model Code
LHL

HEFTY™ Die Spring Compression Springs

Heavy Duty Compression Springs

Lee Spring LHL 1000C 10 is a heavy-duty die compression spring from the HEFTY™ Die Spring series, specifically engineered for demanding industrial applications requiring durabiliy and substantial load capacity. This spring features an 0.935-inch outside diameter (23.75 mm) with a 1-inch hole diameter (25.4 mm) and extends to a free length of 4.5 inch (114.3 mm), making it ideal for stamping and die applications. Made from Oil Tempered Chrome Silicon with a 0.187-inch wire diameter (4.75 mm), the spring delivers a spring rate of 305 lb/inch (53.416 N/mm) through its 13.77 active coils out of 15.77 total coils, with Factory Option wind for predictable deflection behavior. The spring compresses to a solid height of 2.96 inch (75.18 mm) while supporting a maximum load of 469.7 lb (2089.33 N) at full compression. The spring has Squared and Ground ends and a Black Powder Coat finish for optimal die spring performance.

About the HEFTY™ Die Spring Series

HEFTY™ Die Springs offer you the economy of round wire and the durability of chrome silicon or music wire ideally suited for any high stress, heavy load application. Great for many applications such as clutches, brakes, farm machinery and aircraft mechanisms. Available in five different types with different load ratings to fit standard diameters.

HEFTY™ Die Spring Compression Springs have useful applications in various industries, including:

  • Medical devices
  • Firearms
  • Pharmaceutical delivery devices
  • Lighting and electrical control
  • Petro-chemical processes
  • Communication devices
  • Aerospace
  • Testing and measurement equipment
  • Marine applications
  • Automotive
  • Locks and security devices
  • Precision Instruments
  • Hardware

...and many more applications

417471
Product Compression OD 0.935 in, Length 4.5 in, Oil Tempered Chrome Silicon
Product Compression OD 23.75 mm, Length 114.3 mm, Oil Tempered Chrome Silicon
Part Number LHL 1000C 10
Series HEFTY™ Die Spring
Outside Diameter (inch) 0.935
Outside Diameter (cm) 2.375
Outside Diameter (mm) 23.75
Hole Diameter (inch) 1
Hole Diameter (cm) 2.54
Hole Diameter (mm) 25.4
Rod Diameter (inch) 0.5
Rod Diameter (cm) 1.27
Rod Diameter (mm) 12.7
Free Length (inch) 4.5
Free Length (cm) 11.43
Free Length (mm) 114.3
Rate (gm/mm) 5446.69
Rate (kg/cm) 54.467
Rate (kg/mm) 5.4467
Rate (lb/inch) 305
Rate (gm/cm) 54466.9
Rate (N/cm) 534.16
Rate (N/mm) 53.416
Solid Height (inch) 2.96
Solid Height (cm) 7.518
Solid Height (mm) 75.18
Wire Diameter (inch) 0.187
Wire Diameter (cm) 0.475
Wire Diameter (mm) 4.75
Material Oil Tempered Chrome Silicon
Load at Solid Height (gm) 213056
Load at Solid Height (kg) 213.056
Load at Solid Height (lb) 469.7
Load at Solid Height (N) 2089.33
Ends Squared and Ground
Active Coils 13.77
Direction of Wind Factory Option
Finish Black Powder Coat
Total Coils 15.77
0.187 0.935 0.001 0.001 1 0.5 4.5 0.156 15.77 305 30.5 2.96 469.7 0.187 4.5 0.935 4.75 23.75 0.04 25.4 12.7 114.3 3.962 53.416 75.18 2089.33

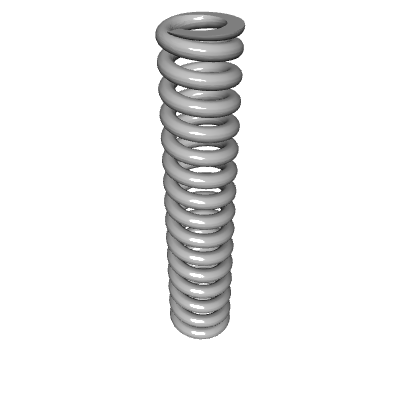

Default View
Side view
Top view
Quantity Price
1 - 24 $10.790
25 - 49 $9.530
50 - 99 $8.650
100 - 199 $7.490
200 - 299 $6.193
300 - 399 $5.657
400 - 499 $5.191
500 - 599 $4.787
600 - 699 $4.449
700 - 799 $4.182
800 - 899 $3.984
900 - 999 $3.849
1000 $3.780
