Model Code
LHL

HEFTY™ Die Spring Compression Springs

Heavy Duty Compression Springs

Lee Spring LHL 1000C 08 is a heavy-duty die compression spring from the HEFTY™ Die Spring series, specifically engineered for demanding industrial applications requiring durabiliy and substantial load capacity. This spring features an 0.935-inch outside diameter (23.75 mm) with a 1-inch hole diameter (25.4 mm) and extends to a free length of 3.5 inch (88.9 mm), making it ideal for stamping and die applications. Made from Oil Tempered Chrome Silicon with a 0.187-inch wire diameter (4.75 mm), the spring delivers a spring rate of 400 lb/inch (70.053 N/mm) through its 10.5 active coils out of 12.5 total coils, with Factory Option wind for predictable deflection behavior. The spring compresses to a solid height of 2.35 inch (59.69 mm) while supporting a maximum load of 460 lb (2046.18 N) at full compression. The spring has Squared and Ground ends and a Black Powder Coat finish for optimal die spring performance.

About the HEFTY™ Die Spring Series

HEFTY™ Die Springs offer you the economy of round wire and the durability of chrome silicon or music wire ideally suited for any high stress, heavy load application. Great for many applications such as clutches, brakes, farm machinery and aircraft mechanisms. Available in five different types with different load ratings to fit standard diameters.

HEFTY™ Die Spring Compression Springs have useful applications in various industries, including:

  • Medical devices
  • Firearms
  • Pharmaceutical delivery devices
  • Lighting and electrical control
  • Petro-chemical processes
  • Communication devices
  • Aerospace
  • Testing and measurement equipment
  • Marine applications
  • Automotive
  • Locks and security devices
  • Precision Instruments
  • Hardware

...and many more applications

417451
Product Compression OD 0.935 in, Length 3.5 in, Oil Tempered Chrome Silicon
Product Compression OD 23.75 mm, Length 88.9 mm, Oil Tempered Chrome Silicon
Part Number LHL 1000C 08
Series HEFTY™ Die Spring
Outside Diameter (inch) 0.935
Outside Diameter (cm) 2.375
Outside Diameter (mm) 23.75
Hole Diameter (inch) 1
Hole Diameter (cm) 2.54
Hole Diameter (mm) 25.4
Rod Diameter (inch) 0.5
Rod Diameter (cm) 1.27
Rod Diameter (mm) 12.7
Free Length (inch) 3.5
Free Length (cm) 8.89
Free Length (mm) 88.9
Rate (gm/mm) 7143.2
Rate (kg/cm) 71.432
Rate (kg/mm) 7.1432
Rate (lb/inch) 400
Rate (gm/cm) 71432
Rate (N/cm) 700.53
Rate (N/mm) 70.053
Solid Height (inch) 2.35
Solid Height (cm) 5.969
Solid Height (mm) 59.69
Wire Diameter (inch) 0.187
Wire Diameter (cm) 0.475
Wire Diameter (mm) 4.75
Material Oil Tempered Chrome Silicon
Load at Solid Height (gm) 208656
Load at Solid Height (kg) 208.656
Load at Solid Height (lb) 460
Load at Solid Height (N) 2046.18
Ends Squared and Ground
Active Coils 10.5
Direction of Wind Factory Option
Finish Black Powder Coat
Total Coils 12.5
0.187 0.935 0.001 0.001 1 0.5 3.5 0.125 12.5 400 40 2.35 460 0.187 3.5 0.935 4.75 23.75 0.04 25.4 12.7 88.9 3.175 70.053 59.69 2046.18

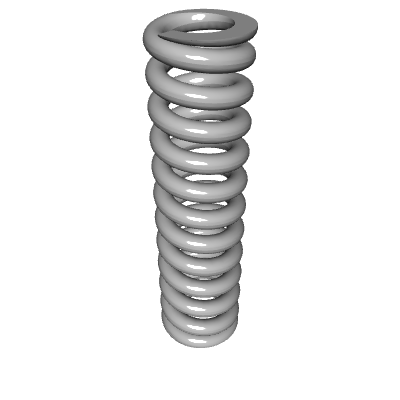

Default View

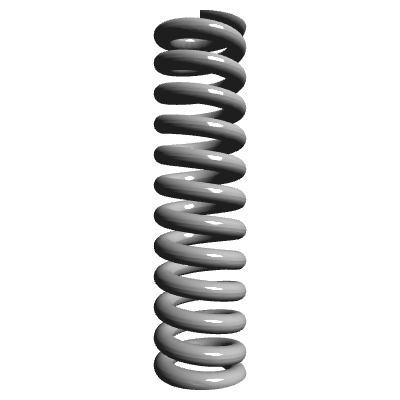

Side view

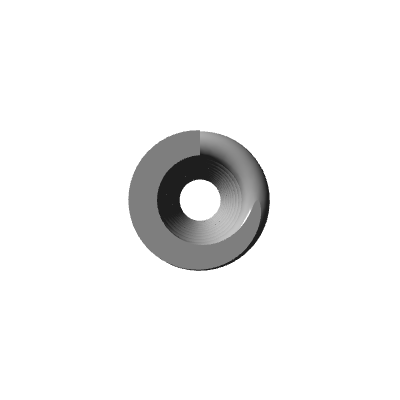

Top view
