Model Code
LHL

HEFTY™ Die Spring Compression Springs

Heavy Duty Compression Springs

Lee Spring LHL 1000B 08 is a heavy-duty die compression spring from the HEFTY™ Die Spring series, specifically engineered for demanding industrial applications requiring durabiliy and substantial load capacity. This spring features an 0.91-inch outside diameter (23.11 mm) with a 1-inch hole diameter (25.4 mm) and extends to a free length of 3.5 inch (88.9 mm), making it ideal for stamping and die applications. Made from Oil Tempered Chrome Silicon with a 0.162-inch wire diameter (4.11 mm), the spring delivers a spring rate of 216 lb/inch (37.829 N/mm) through its 10.95 active coils out of 12.95 total coils, with Factory Option wind for predictable deflection behavior. The spring compresses to a solid height of 2.11 inch (53.59 mm) while supporting a maximum load of 300.2 lb (1335.36 N) at full compression. The spring has Squared and Ground ends and a Purple Powder Coat finish for optimal die spring performance.

About the HEFTY™ Die Spring Series

HEFTY™ Die Springs offer you the economy of round wire and the durability of chrome silicon or music wire ideally suited for any high stress, heavy load application. Great for many applications such as clutches, brakes, farm machinery and aircraft mechanisms. Available in five different types with different load ratings to fit standard diameters.

HEFTY™ Die Spring Compression Springs have useful applications in various industries, including:

  • Medical devices
  • Firearms
  • Pharmaceutical delivery devices
  • Lighting and electrical control
  • Petro-chemical processes
  • Communication devices
  • Aerospace
  • Testing and measurement equipment
  • Marine applications
  • Automotive
  • Locks and security devices
  • Precision Instruments
  • Hardware

...and many more applications

417301
Product Compression OD 0.91 in, Length 3.5 in, Oil Tempered Chrome Silicon
Product Compression OD 23.11 mm, Length 88.9 mm, Oil Tempered Chrome Silicon
Part Number LHL 1000B 08
Series HEFTY™ Die Spring
Outside Diameter (inch) 0.91
Outside Diameter (cm) 2.311
Outside Diameter (mm) 23.11
Hole Diameter (inch) 1
Hole Diameter (cm) 2.54
Hole Diameter (mm) 25.4
Rod Diameter (inch) 0.5
Rod Diameter (cm) 1.27
Rod Diameter (mm) 12.7
Free Length (inch) 3.5
Free Length (cm) 8.89
Free Length (mm) 88.9
Rate (gm/mm) 3857.33
Rate (kg/cm) 38.573
Rate (kg/mm) 3.8573
Rate (lb/inch) 216
Rate (gm/cm) 38573.3
Rate (N/cm) 378.29
Rate (N/mm) 37.829
Solid Height (inch) 2.11
Solid Height (cm) 5.359
Solid Height (mm) 53.59
Wire Diameter (inch) 0.162
Wire Diameter (cm) 0.411
Wire Diameter (mm) 4.11
Material Oil Tempered Chrome Silicon
Load at Solid Height (gm) 136171
Load at Solid Height (kg) 136.171
Load at Solid Height (lb) 300.2
Load at Solid Height (N) 1335.36
Ends Squared and Ground
Active Coils 10.95
Direction of Wind Factory Option
Finish Purple Powder Coat
Total Coils 12.95
0.162 0.91 0.001 0.001 1 0.5 3.5 0.125 12.95 216 21.6 2.11 300.2 0.162 3.5 0.91 4.11 23.11 0.04 25.4 12.7 88.9 3.175 37.829 53.59 1335.36

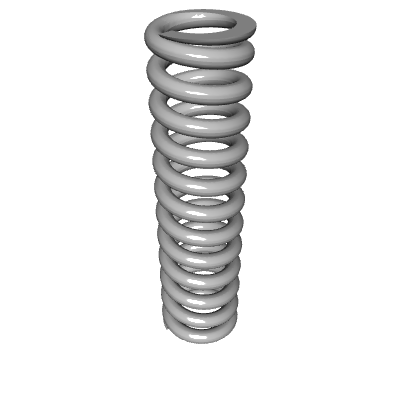

Default View

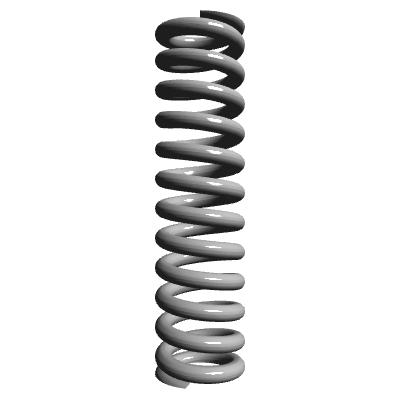

Side view
Top view
Quantity Price
1 - 24 $8.910
25 - 49 $7.680
50 - 99 $6.500
100 - 199 $5.690
200 - 299 $4.682
300 - 399 $4.277
400 - 499 $3.924
500 - 599 $3.621
600 - 699 $3.369
700 - 799 $3.162
800 - 899 $3.011
900 - 999 $2.912
1000 $2.860
