Model Code
LHL

HEFTY™ Die Spring Compression Springs

Heavy Duty Compression Springs

Lee Spring LHL 1000A 07 is a heavy-duty die compression spring from the HEFTY™ Die Spring series, specifically engineered for demanding industrial applications requiring durabiliy and substantial load capacity. This spring features an 0.96-inch outside diameter (24.38 mm) with a 1-inch hole diameter (25.4 mm) and extends to a free length of 3 inch (76.2 mm), making it ideal for stamping and die applications. Made from Oil Tempered Chrome Silicon with a 0.135-inch wire diameter (3.43 mm), the spring delivers a spring rate of 100 lb/inch (17.513 N/mm) through its 8.5 active coils out of 10.5 total coils, with Factory Option wind for predictable deflection behavior. The spring compresses to a solid height of 1.43 inch (36.32 mm) while supporting a maximum load of 157 lb (698.37 N) at full compression. The spring has Squared and Ground ends and a Gray Powder Coat finish for optimal die spring performance.

About the HEFTY™ Die Spring Series

HEFTY™ Die Springs offer you the economy of round wire and the durability of chrome silicon or music wire ideally suited for any high stress, heavy load application. Great for many applications such as clutches, brakes, farm machinery and aircraft mechanisms. Available in five different types with different load ratings to fit standard diameters.

HEFTY™ Die Spring Compression Springs have useful applications in various industries, including:

  • Medical devices
  • Firearms
  • Pharmaceutical delivery devices
  • Lighting and electrical control
  • Petro-chemical processes
  • Communication devices
  • Aerospace
  • Testing and measurement equipment
  • Marine applications
  • Automotive
  • Locks and security devices
  • Precision Instruments
  • Hardware

...and many more applications

420011
Product Compression OD 0.96 in, Length 3 in, Oil Tempered Chrome Silicon
Product Compression OD 24.38 mm, Length 76.2 mm, Oil Tempered Chrome Silicon
Part Number LHL 1000A 07
Series HEFTY™ Die Spring
Outside Diameter (inch) 0.96
Outside Diameter (cm) 2.438
Outside Diameter (mm) 24.38
Hole Diameter (inch) 1
Hole Diameter (cm) 2.54
Hole Diameter (mm) 25.4
Rod Diameter (inch) 0.5
Rod Diameter (cm) 1.27
Rod Diameter (mm) 12.7
Free Length (inch) 3
Free Length (cm) 7.62
Free Length (mm) 76.2
Rate (gm/mm) 1785.8
Rate (kg/cm) 17.858
Rate (kg/mm) 1.7858
Rate (lb/inch) 100
Rate (gm/cm) 17858
Rate (N/cm) 175.13
Rate (N/mm) 17.513
Solid Height (inch) 1.43
Solid Height (cm) 3.632
Solid Height (mm) 36.32
Wire Diameter (inch) 0.135
Wire Diameter (cm) 0.343
Wire Diameter (mm) 3.43
Material Oil Tempered Chrome Silicon
Load at Solid Height (gm) 71215.2
Load at Solid Height (kg) 71.215
Load at Solid Height (lb) 157
Load at Solid Height (N) 698.37
Ends Squared and Ground
Active Coils 8.5
Direction of Wind Factory Option
Finish Gray Powder Coat
Total Coils 10.5
0.135 0.96 0.001 0.001 1 0.5 3 0.105 10.5 100 10 1.43 157 0.135 3 0.96 3.43 24.38 0.04 25.4 12.7 76.2 2.667 17.513 36.32 698.37

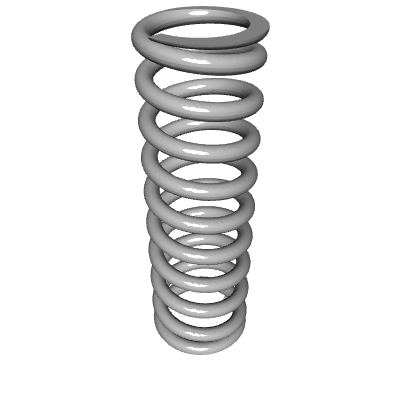

Default View

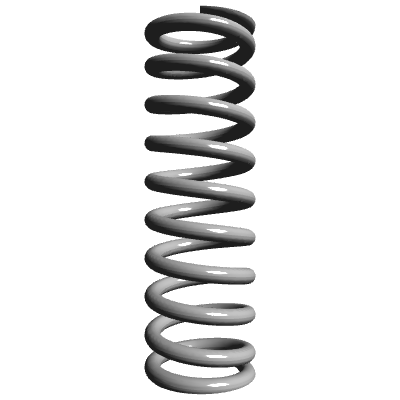

Side view
Top view
Quantity Price
1 - 24 $7.890
25 - 49 $6.710
50 - 99 $5.830
100 - 199 $4.800
200 - 299 $3.939
300 - 399 $3.600
400 - 499 $3.301
500 - 599 $3.045
600 - 699 $2.833
700 - 799 $2.663
800 - 899 $2.534
900 - 999 $2.448
1000 $2.405
