Model Code
LHL

HEFTY™ Die Spring Compression Springs

Heavy Duty Compression Springs

Lee Spring LHL 1000A 06 is a heavy-duty die compression spring from the HEFTY™ Die Spring series, specifically engineered for demanding industrial applications requiring durabiliy and substantial load capacity. This spring features an 0.965-inch outside diameter (24.51 mm) with a 1-inch hole diameter (25.4 mm) and extends to a free length of 2.5 inch (63.5 mm), making it ideal for stamping and die applications. Made from Oil Tempered Chrome Silicon with a 0.135-inch wire diameter (3.43 mm), the spring delivers a spring rate of 120 lb/inch (21.016 N/mm) through its 6.96 active coils out of 8.96 total coils, with Factory Option wind for predictable deflection behavior. The spring compresses to a solid height of 1.22 inch (30.99 mm) while supporting a maximum load of 153.6 lb (683.25 N) at full compression. The spring has Squared and Ground ends and a Gray Powder Coat finish for optimal die spring performance.

About the HEFTY™ Die Spring Series

HEFTY™ Die Springs offer you the economy of round wire and the durability of chrome silicon or music wire ideally suited for any high stress, heavy load application. Great for many applications such as clutches, brakes, farm machinery and aircraft mechanisms. Available in five different types with different load ratings to fit standard diameters.

HEFTY™ Die Spring Compression Springs have useful applications in various industries, including:

  • Medical devices
  • Firearms
  • Pharmaceutical delivery devices
  • Lighting and electrical control
  • Petro-chemical processes
  • Communication devices
  • Aerospace
  • Testing and measurement equipment
  • Marine applications
  • Automotive
  • Locks and security devices
  • Precision Instruments
  • Hardware

...and many more applications

420001
Product Compression OD 0.965 in, Length 2.5 in, Oil Tempered Chrome Silicon
Product Compression OD 24.51 mm, Length 63.5 mm, Oil Tempered Chrome Silicon
Part Number LHL 1000A 06
Series HEFTY™ Die Spring
Outside Diameter (inch) 0.965
Outside Diameter (cm) 2.451
Outside Diameter (mm) 24.51
Hole Diameter (inch) 1
Hole Diameter (cm) 2.54
Hole Diameter (mm) 25.4
Rod Diameter (inch) 0.5
Rod Diameter (cm) 1.27
Rod Diameter (mm) 12.7
Free Length (inch) 2.5
Free Length (cm) 6.35
Free Length (mm) 63.5
Rate (gm/mm) 2142.96
Rate (kg/cm) 21.43
Rate (kg/mm) 2.143
Rate (lb/inch) 120
Rate (gm/cm) 21429.6
Rate (N/cm) 210.16
Rate (N/mm) 21.016
Solid Height (inch) 1.22
Solid Height (cm) 3.099
Solid Height (mm) 30.99
Wire Diameter (inch) 0.135
Wire Diameter (cm) 0.343
Wire Diameter (mm) 3.43
Material Oil Tempered Chrome Silicon
Load at Solid Height (gm) 69673
Load at Solid Height (kg) 69.673
Load at Solid Height (lb) 153.6
Load at Solid Height (N) 683.25
Ends Squared and Ground
Active Coils 6.96
Direction of Wind Factory Option
Finish Gray Powder Coat
Total Coils 8.96
0.135 0.965 0.001 0.001 1 0.5 2.5 0.088 8.96 120 12 1.22 153.6 0.135 2.5 0.965 3.43 24.51 0.04 25.4 12.7 63.5 2.235 21.016 30.99 683.25

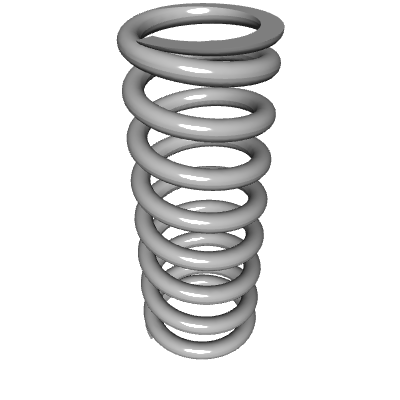

Default View

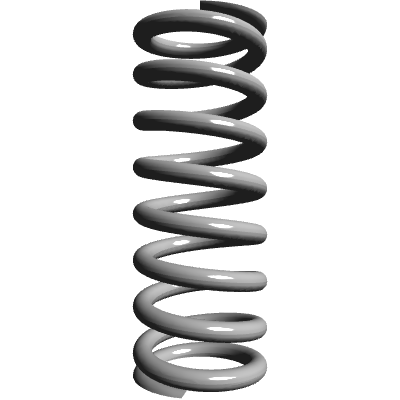

Side view
Top view
Quantity Price
1 - 24 $7.870
25 - 49 $6.680
50 - 99 $5.690
100 - 199 $4.670
200 - 299 $3.822
300 - 399 $3.489
400 - 499 $3.201
500 - 599 $2.953
600 - 699 $2.747
700 - 799 $2.584
800 - 899 $2.456
900 - 999 $2.376
1000 $2.333
