DIN-Plus Series Part 1 Compression Springs

Standard DIN Sizes Plus Improved Corrosion Resistance

Lee Spring LCD250LP 03 M is a precision compression spring from the DIN-Plus Series Part 1, engineered for requiring precise force delivery and reliable performance. This spring features an 1.083-inch outside diameter (27.5 mm) with a 1.119-inch hole diameter (28.4 mm) and extends to a free length of 4.528 inch (115 mm), making it ideal for critical assemblies. Made from Music Wire with a 0.098-inch wire diameter (2.5 mm), the spring delivers a spring rate of 17.135 lb/inch (3.001 N/mm) through its 8.5 active coils out of 10.5 total coils for predictable deflection behavior. The spring compresses to a solid height of 1.033 inch (26.25 mm) while supporting a maximum load of 59.876 lb (266.34 N) at full compression. The spring has Squared and Ground ends and a Zinc Plate and Bake per ASTM B633 finish for optimal performance.

About the DIN-Plus Compression Spring Series

The Lee Spring DIN-Plus Compression Spring Series offers a large selection of standard DIN size springs to meet increasing global demand for metric designs with the added benefit of excellent corrosion resistance. The DIN-Plus Series is offered in two DIN types, Part 1 and Part 2. This spring is a DIN Part 1 type spring.

The DIN2098 Part 1 series includes the more standard to larger range of DIN2098 compression springs made of spring steel available in sizes from 4.4mm (0.173") to 1015mm (39.961") long. Wire sizes go from 0.5mm (0.020") up to 10mm (0.394") over a selection of outside diameters to work inside hole diameters from 3.4mm (0.134") to 140mm (5.512"). All parts are right hand wound with ends squared and ground for added stability under heavy loading. This series is also preset for wire sizes 1.25mm (0.049") and up which increases load carrying ability. The Lee Spring DIN-Plus Part 1 range also includes a zinc plate finish, which improves corrosion resistance and distinguishes the Lee Spring DIN-Plus Series from many other commercial offerings available.

DIN-Plus Series Part 1 Compression Springs have useful applications in various industries, including:

  • Medical devices
  • Firearms
  • Pharmaceutical delivery devices
  • Lighting and electrical control
  • Petro-chemical processes
  • Communication devices
  • Aerospace
  • Testing and measurement equipment
  • Marine applications
  • Automotive
  • Locks and security devices
  • Precision Instruments
  • Hardware

...and many more applications

484046

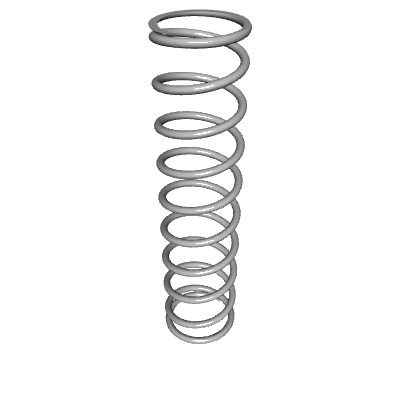

Product Compression OD 1.083 in, Length 4.528 in, Music Wire
Product Compression OD 27.5 mm, Length 115 mm, Music Wire
Part Number LCD250LP 03 M
Series DIN-Plus Series Part 1
Outside Diameter (inch) 1.083
Outside Diameter (cm) 2.75
Outside Diameter (mm) 27.5
Hole Diameter (inch) 1.119
Hole Diameter (cm) 2.84
Hole Diameter (mm) 28.4
Rod Diameter (inch) 0.85
Rod Diameter (cm) 2.16
Rod Diameter (mm) 21.6
Free Length (inch) 4.528
Free Length (cm) 11.5
Free Length (mm) 115
Rate (gm/mm) 306
Rate (kg/cm) 3.06
Rate (kg/mm) 0.306
Rate (lb/inch) 17.135
Rate (gm/cm) 3060
Rate (N/cm) 30.01
Rate (N/mm) 3.001
Solid Height (inch) 1.033
Solid Height (cm) 2.625
Solid Height (mm) 26.25
Wire Diameter (inch) 0.098
Wire Diameter (cm) 0.25
Wire Diameter (mm) 2.5
Material Music Wire
Load at Solid Height (gm) 27159.8
Load at Solid Height (kg) 27.16
Load at Solid Height (lb) 59.876
Load at Solid Height (N) 266.34
Ends Squared and Ground
Active Coils 8.5
Direction of Wind Right Hand
Finish Zinc Plate and Bake per ASTM B633
Total Coils 10.5
0.0984 1.0827 0.0177 0.0177 1.119 0.85 4.528 0.086 10.5 17.135 0 1.0438 59.876 0.0984 4.528 1.0827 2.5 27.5 0.45 28.4 21.6 115 2.184 3.001 26.25 266.34
Default View

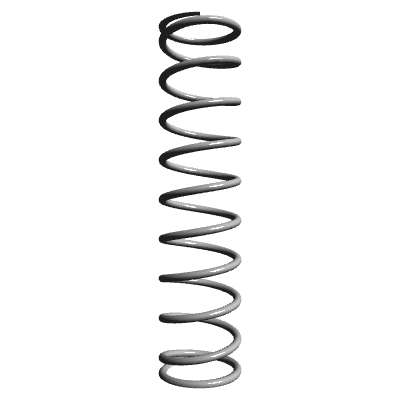

Side view
