Specifications



Download Spec Sheet

Imperial/Inches Metric
Physical Dimension

mm cm

Load

N kg gm




LC 162JK 09M

Cost
$0.00
$0.00
Price
$0.00
Weight
0.18 lb.
Direction of Wind
Factory Option
Ends
Squared and Ground
Finish
Zinc Plate and Bake per ASTM B633
Material
Music Wire
Total Coils
14.030
Product Series
Published Stock Code
LC162JK09M
Product Type
Compression Spring
Product Category
Stock
Revision
NR
Rate (N/mm)
52.24
Rate (kg/cm)
53.26
Rate (lb/in)
298.26
Rate (gm/mm)
5326.28
Weight per Item (lb)
0.18
Material Specification
ASTM A228
Free Length (cm)
8.890
Free Length (inch)
3.500
Free Length (mm)
88.900
Free Length - Build Spec (in)
3.50
Free Length Tolerance (cm)
0.32
Free Length Tolerance (in)
0.13
Free Length Tolerance (mm)
3.18
Free Length Tolerance - Build Spec (in)
0.13
Hole Diameter (cm)
2.14
Hole Diameter (inch)
0.84
Hole Diameter (mm)
21.44
Inside Diameter (cm)
1.24
Inside Diameter (in)
0.49
Inside Diameter (mm)
12.42
Outside Diameter (cm)
2.065
Outside Diameter (in)
0.81
Outside Diameter (mm)
20.65
Outside Diameter - Build Spec (in)
0.81
Rate (gm/cm)
53262.80
Rate (kg/mm)
5.33
Rate (N/cm)
522.35
Rate - Build Spec (lb/in)
298.26
Rate Tolerance (gm/cm)
5326.33
Rate Tolerance (gm/mm)
532.63
Rate Tolerance (kg/cm)
5.33
Rate Tolerance (kg/mm)
0.53
Rate Tolerance (lb/in)
29.83
Rate Tolerance (N/cm)
52.24
Rate Tolerance (N/mm)
5.22
Rate Tolerance - Build Spec (lb/in)
29.83
Rod Diameter (cm)
1.19
Rod Diameter (inch)
0.47
Rod Diameter (mm)
11.91
Solid Height (cm)
5.99
Solid Height (inch)
2.36
Solid Height (mm)
59.92
Total Coils - Build Spec
14.03
Wire Diameter (cm)
0.41
Wire Diameter (inch)
0.16
Wire Diameter (mm)
4.11
Wire Diameter - Build Spec (in)
0.16
Hole Diameter - Build Spec. (in)
0.84
Rod Diameter - Build Spec. (in)
0.47
Rod Diameter Tolerance - Build Spec. (in)
MIN
Rod Diameter Tolerance (in)
MIN
Rod Diameter Tolerance (mm)
MIN
Rod Diameter Tolerance (cm)
MIN
Solid Height - Build Spec. (in)
2.36
Material Short Description
MW
Load at Solid Height (lb)
340.31
Load at Solid Height - Build Spec. (lb)
340.31
Load at Solid Height (N)
1513.78
Load at Solid Height (kg)
154.37
Load at Solid Height (gm)
154366.00
Active Coils - Build Spec.
12.03
Active Coils
12.03
Active Coils Tolerance - Build Spec.
Reference
Active Coils Tolerance
Reference
Product Series
Standard Compression Series (inch)
Inside Diameter Tolerance (cm)
Reference
Inside Diameter Tolerance (in)
Reference
Inside Diameter Tolerance (mm)
Reference
Inside Diameter Tolerance - Build Spec (in)
Reference
Outside Diameter Tolerance (cm)
+/-0.038
Outside Diameter Tolerance (in)
+/-0.015
Outside Diameter Tolerance (mm)
+/-0.38
Outside Diameter Tolerance - Build Spec (in)
+/-0.015
Inside Diameter - Build Spec (in)
0.49
Outside Diameter Lower Tolerance (in)
0.02
Outside Diameter Upper Tolerance (in)
0.02
Outside Diameter Upper Tolerance (mm)
0.38
Outside Diameter Lower Tolerance (mm)
0.38
Model Code
LC

Standard Compression Series (inch) Compression Springs

Selection to Match Your Needs

Lee Spring LC 162JK 09M is a precision compression spring from the Standard Compression Series (inch), engineered for applications requiring reliable quality compression springs. This spring features an 0.813-inch outside diameter (20.65 mm) with a 0.844-inch hole diameter (21.44 mm) and extends to a free length of 3.5 inch (88.9 mm). Made from Music Wire with a 0.162-inch wire diameter (4.11 mm), the spring delivers a spring rate of 298.258 lb/inch (52.235 N/mm) through its 12.03 active coils out of 14.03 total coils for predictable deflection behavior. The spring compresses to a solid height of 2.359 inch (59.92 mm) while supporting a maximum load of 340.312 lb (1513.78 N) at full compression. The spring has Squared and Ground ends and a Zinc Plate and Bake per ASTM B633 finish for optimal performance.

About the Standard Compression Spring Series

The Lee Spring Standard Compression Spring line includes a wide range of size and rate combinations. Selections are sorted in ascending order to mating hole/bore diameter sizes. Standard Compression Springs are available in both standard and metric series. Standard Series springs are available in Music Wire, Type 302 Stainless Steel and Type 316 Stainless Steel. Metric Series springs are available in Music Wire and Type 302 Stainless Steel. The Music Wire springs are provided with a plating finish for light corrosion resistance. The Type 302 Stainless Steel springs are passivated, while Type 316 Stainless Steel springs are passivated and ultrasonically cleaned. Lee Spring Standard Compression Springs feature squared and ground ends. A squared end, also called a closed end, is made by reducing the coil pitch of the ends to zero. Squareness influences how a force produced by the spring can be transferred to adjacent parts. The ground ends provide flat bearing surfaces and additional stability.

Standard Compression Series (inch) Compression Springs have useful applications in various industries, including:

  • Medical devices
  • Firearms
  • Pharmaceutical delivery devices
  • Lighting and electrical control
  • Petro-chemical processes
  • Communication devices
  • Aerospace
  • Testing and measurement equipment
  • Marine applications
  • Automotive
  • Locks and security devices
  • Precision Instruments
  • Hardware

...and many more applications

440421
Product Compression OD 0.813 in, Length 3.5 in, Music Wire
Product Compression OD 20.65 mm, Length 88.9 mm, Music Wire
Part Number LC 162JK 09M
Series Standard Compression Series (inch)
Outside Diameter (inch) 0.813
Outside Diameter (cm) 2.065
Outside Diameter (mm) 20.65
Hole Diameter (inch) 0.844
Hole Diameter (cm) 2.144
Hole Diameter (mm) 21.44
Rod Diameter (inch) 0.469
Rod Diameter (cm) 1.191
Rod Diameter (mm) 11.91
Free Length (inch) 3.5
Free Length (cm) 8.89
Free Length (mm) 88.9
Rate (gm/mm) 5326.28
Rate (kg/cm) 53.263
Rate (kg/mm) 5.3263
Rate (lb/inch) 298.258
Rate (gm/cm) 53262.8
Rate (N/cm) 522.35
Rate (N/mm) 52.235
Solid Height (inch) 2.359
Solid Height (cm) 5.992
Solid Height (mm) 59.92
Wire Diameter (inch) 0.162
Wire Diameter (cm) 0.411
Wire Diameter (mm) 4.11
Material Music Wire
Load at Solid Height (gm) 154366
Load at Solid Height (kg) 154.366
Load at Solid Height (lb) 340.312
Load at Solid Height (N) 1513.78
Ends Squared and Ground
Active Coils 12.03
Direction of Wind Factory Option
Finish Zinc Plate and Bake per ASTM B633
Total Coils 14.03
0.162 0.813 0.015 0.015 0.844 0.469 3.5 0.125 14.03 298.258 29.826 2.359 340.312 0.162 3.5 0.813 4.11 20.65 0.38 21.44 11.91 88.9 3.175 52.235 59.92 1513.78

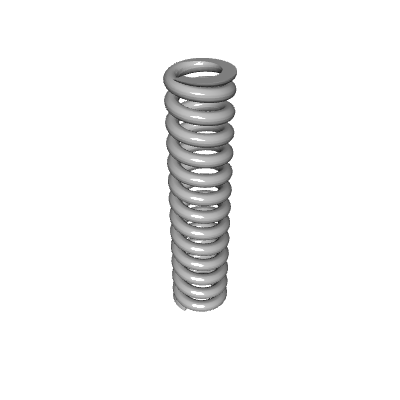

Default View

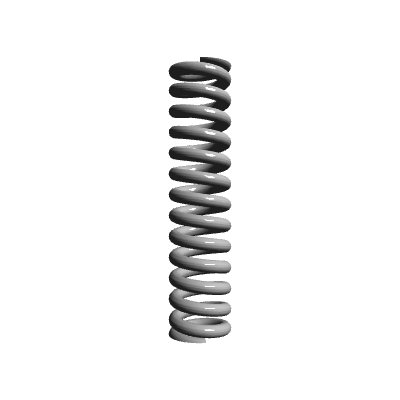

Side view

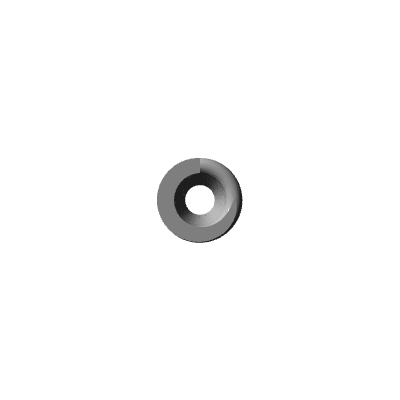

Top view
Quantity Price
1 - 19 $13.800
20 - 49 $8.640
50 - 99 $4.980
100 - 199 $3.290
200 - 299 $2.668
300 - 399 $2.511
400 - 499 $2.369
500 - 599 $2.246
600 - 699 $2.133
700 - 799 $2.040
800 - 899 $1.960
900 - 999 $1.897
1000 $1.851

Why Choose Lee Spring?

large selection of springs

Selection

25,000+ products
available, plus custom
products made to your specification.

FREE Standard Ground Shipping

on Stock Springs in the Continental United States

FREE Plating

on all Music Wire Stock Springs

FREE Grinding

on all Standard Stock Compression Springs

in stock springs

In Stock

Springs ready to ship
today.

Expert Engineering Assistance

on Stock and Custom Springs

Certificate of Compliance

on all Stock Springs and Custom Springs

Guaranteed RoHS Compliance

on all Stock Springs

engineering and customer service support

Support

Engineering and
Customer Service teams ready to assist.

Live Customer Service Support
