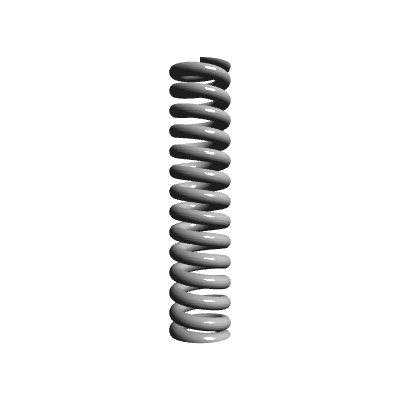

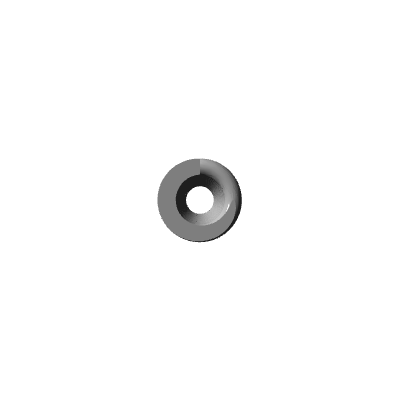

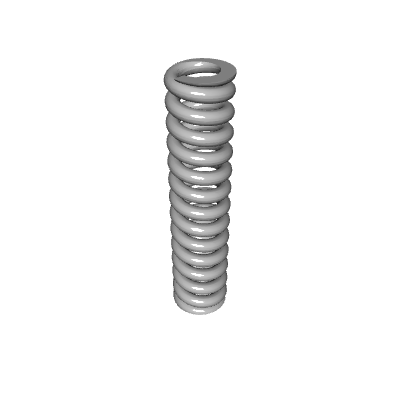

LC 150HK 10M
Cost
$0.00
$0.00
Price
$0.00
Weight
0.14 lb.
Direction of Wind
Factory Option
Ends
Squared and Ground
Finish
Zinc Plate and Bake per ASTM B633
Material
Music Wire
Total Coils
14.350
Product Series
Published Stock Code
LC150HK10M
Product Type
Compression Spring
Product Category
Stock
Revision
NR
Rate (N/mm)
62.11
Rate (kg/cm)
63.33
Rate (lb/in)
354.65
Rate (gm/mm)
6333.41
Weight per Item (lb)
0.14
Material Specification
ASTM A228
Free Length (cm)
7.620
Free Length (inch)
3.000
Free Length (mm)
76.200
Free Length - Build Spec (in)
3.00
Free Length Tolerance (cm)
0.27
Free Length Tolerance (in)
0.11
Free Length Tolerance (mm)
2.67
Free Length Tolerance - Build Spec (in)
0.11
Hole Diameter (cm)
1.83
Hole Diameter (inch)
0.72
Hole Diameter (mm)
18.29
Inside Diameter (cm)
1.00
Inside Diameter (in)
0.39
Inside Diameter (mm)
9.96
Outside Diameter (cm)
1.748
Outside Diameter (in)
0.69
Outside Diameter (mm)
17.48
Outside Diameter - Build Spec (in)
0.69
Rate (gm/cm)
63334.10
Rate (kg/mm)
6.33
Rate (N/cm)
621.12
Rate - Build Spec (lb/in)
354.65
Rate Tolerance (gm/cm)
6333.34
Rate Tolerance (gm/mm)
633.33
Rate Tolerance (kg/cm)
6.33
Rate Tolerance (kg/mm)
0.63
Rate Tolerance (lb/in)
35.47
Rate Tolerance (N/cm)
62.11
Rate Tolerance (N/mm)
6.21
Rate Tolerance - Build Spec (lb/in)
35.47
Rod Diameter (cm)
0.94
Rod Diameter (inch)
0.37
Rod Diameter (mm)
9.40
Solid Height (cm)
5.60
Solid Height (inch)
2.20
Solid Height (mm)
55.98
Total Coils - Build Spec
14.35
Wire Diameter (cm)
0.38
Wire Diameter (inch)
0.15
Wire Diameter (mm)
3.76
Wire Diameter - Build Spec (in)
0.15
Hole Diameter - Build Spec. (in)
0.72
Rod Diameter - Build Spec. (in)
0.37
Rod Diameter Tolerance - Build Spec. (in)
MIN
Rod Diameter Tolerance (in)
MIN
Rod Diameter Tolerance (mm)
MIN
Rod Diameter Tolerance (cm)
MIN
Solid Height - Build Spec. (in)
2.20
Material Short Description
MW
Load at Solid Height (lb)
282.30
Load at Solid Height - Build Spec. (lb)
282.30
Load at Solid Height (N)
1255.74
Load at Solid Height (kg)
128.05
Load at Solid Height (gm)
128052.00
Active Coils - Build Spec.
12.35
Active Coils
12.35
Active Coils Tolerance - Build Spec.
Reference
Active Coils Tolerance
Reference
Product Series
Standard Compression Series (inch)
Inside Diameter Tolerance (cm)
Reference
Inside Diameter Tolerance (in)
Reference
Inside Diameter Tolerance (mm)
Reference
Inside Diameter Tolerance - Build Spec (in)
Reference
Outside Diameter Tolerance (cm)
+/-0.038
Outside Diameter Tolerance (in)
+/-0.015
Outside Diameter Tolerance (mm)
+/-0.38
Outside Diameter Tolerance - Build Spec (in)
+/-0.015
Inside Diameter - Build Spec (in)
0.39
Outside Diameter Lower Tolerance (in)
0.02
Outside Diameter Upper Tolerance (in)
0.02
Outside Diameter Upper Tolerance (mm)
0.38
Outside Diameter Lower Tolerance (mm)
0.38
Model Code
LC
