compression main view
compresssion side view
compression top view
3D
2D
Quantity


Add

Enter your details and we'll get started right away.

Most quotes are generated and emailed instantly. Large-volume requests are reviewed by our team and typically follow up within 1 business day.



Specifications



Download Spec Sheet

Imperial/Inches Metric
Physical Dimension

mm cm

Load

N kg gm




LC 150HK 09M

Cost
$0.00
$0.00
Price
$0.00
Weight
0.11 lb.
Direction of Wind
Factory Option
Ends
Squared and Ground
Finish
Zinc Plate and Bake per ASTM B633
Material
Music Wire
Total Coils
12.060
Product Series
Published Stock Code
LC150HK09M
Product Type
Compression Spring
Product Category
Stock
Revision
NR
Rate (N/mm)
76.23
Rate (kg/cm)
77.73
Rate (lb/in)
435.26
Rate (gm/mm)
7772.82
Weight per Item (lb)
0.11
Material Specification
ASTM A228
Free Length (cm)
6.350
Free Length (inch)
2.500
Free Length (mm)
63.500
Free Length - Build Spec (in)
2.50
Free Length Tolerance (cm)
0.22
Free Length Tolerance (in)
0.09
Free Length Tolerance (mm)
2.24
Free Length Tolerance - Build Spec (in)
0.09
Hole Diameter (cm)
1.83
Hole Diameter (inch)
0.72
Hole Diameter (mm)
18.29
Inside Diameter (cm)
1.00
Inside Diameter (in)
0.39
Inside Diameter (mm)
9.96
Outside Diameter (cm)
1.748
Outside Diameter (in)
0.69
Outside Diameter (mm)
17.48
Outside Diameter - Build Spec (in)
0.69
Rate (gm/cm)
77728.20
Rate (kg/mm)
7.77
Rate (N/cm)
762.28
Rate - Build Spec (lb/in)
435.26
Rate Tolerance (gm/cm)
7772.87
Rate Tolerance (gm/mm)
777.29
Rate Tolerance (kg/cm)
7.77
Rate Tolerance (kg/mm)
0.78
Rate Tolerance (lb/in)
43.53
Rate Tolerance (N/cm)
76.23
Rate Tolerance (N/mm)
7.62
Rate Tolerance - Build Spec (lb/in)
43.53
Rod Diameter (cm)
0.94
Rod Diameter (inch)
0.37
Rod Diameter (mm)
9.40
Solid Height (cm)
4.70
Solid Height (inch)
1.85
Solid Height (mm)
46.99
Total Coils - Build Spec
12.06
Wire Diameter (cm)
0.38
Wire Diameter (inch)
0.15
Wire Diameter (mm)
3.76
Wire Diameter - Build Spec (in)
0.15
Hole Diameter - Build Spec. (in)
0.72
Rod Diameter - Build Spec. (in)
0.37
Rod Diameter Tolerance - Build Spec. (in)
MIN
Rod Diameter Tolerance (in)
MIN
Rod Diameter Tolerance (mm)
MIN
Rod Diameter Tolerance (cm)
MIN
Solid Height - Build Spec. (in)
1.85
Material Short Description
MW
Load at Solid Height (lb)
282.92
Load at Solid Height - Build Spec. (lb)
282.92
Load at Solid Height (N)
1258.49
Load at Solid Height (kg)
128.33
Load at Solid Height (gm)
128332.00
Active Coils - Build Spec.
10.06
Active Coils
10.06
Active Coils Tolerance - Build Spec.
Reference
Active Coils Tolerance
Reference
Product Series
Standard Compression Series (inch)
Inside Diameter Tolerance (cm)
Reference
Inside Diameter Tolerance (in)
Reference
Inside Diameter Tolerance (mm)
Reference
Inside Diameter Tolerance - Build Spec (in)
Reference
Outside Diameter Tolerance (cm)
+/-0.038
Outside Diameter Tolerance (in)
+/-0.015
Outside Diameter Tolerance (mm)
+/-0.38
Outside Diameter Tolerance - Build Spec (in)
+/-0.015
Inside Diameter - Build Spec (in)
0.39
Outside Diameter Lower Tolerance (in)
0.02
Outside Diameter Upper Tolerance (in)
0.02
Outside Diameter Upper Tolerance (mm)
0.38
Outside Diameter Lower Tolerance (mm)
0.38
Model Code
LC

Standard Compression Series (inch) Compression Springs

Selection to Match Your Needs

Lee Spring LC 150HK 09M is a precision compression spring from the Standard Compression Series (inch), engineered for applications requiring reliable quality compression springs. This spring features an 0.688-inch outside diameter (17.48 mm) with a 0.72-inch hole diameter (18.29 mm) and extends to a free length of 2.5 inch (63.5 mm). Made from Music Wire with a 0.148-inch wire diameter (3.76 mm), the spring delivers a spring rate of 435.257 lb/inch (76.228 N/mm) through its 10.06 active coils out of 12.06 total coils for predictable deflection behavior. The spring compresses to a solid height of 1.85 inch (46.99 mm) while supporting a maximum load of 282.919 lb (1258.49 N) at full compression. The spring has Squared and Ground ends and a Zinc Plate and Bake per ASTM B633 finish for optimal performance.

About the Standard Compression Spring Series

The Lee Spring Standard Compression Spring line includes a wide range of size and rate combinations. Selections are sorted in ascending order to mating hole/bore diameter sizes. Standard Compression Springs are available in both standard and metric series. Standard Series springs are available in Music Wire, Type 302 Stainless Steel and Type 316 Stainless Steel. Metric Series springs are available in Music Wire and Type 302 Stainless Steel. The Music Wire springs are provided with a plating finish for light corrosion resistance. The Type 302 Stainless Steel springs are passivated, while Type 316 Stainless Steel springs are passivated and ultrasonically cleaned. Lee Spring Standard Compression Springs feature squared and ground ends. A squared end, also called a closed end, is made by reducing the coil pitch of the ends to zero. Squareness influences how a force produced by the spring can be transferred to adjacent parts. The ground ends provide flat bearing surfaces and additional stability.

Standard Compression Series (inch) Compression Springs have useful applications in various industries, including:

  • Medical devices
  • Firearms
  • Pharmaceutical delivery devices
  • Lighting and electrical control
  • Petro-chemical processes
  • Communication devices
  • Aerospace
  • Testing and measurement equipment
  • Marine applications
  • Automotive
  • Locks and security devices
  • Precision Instruments
  • Hardware

...and many more applications

440181
Product Compression OD 0.688 in, Length 2.5 in, Music Wire
Product Compression OD 17.48 mm, Length 63.5 mm, Music Wire
Part Number LC 150HK 09M
Series Standard Compression Series (inch)
Outside Diameter (inch) 0.688
Outside Diameter (cm) 1.748
Outside Diameter (mm) 17.48
Hole Diameter (inch) 0.72
Hole Diameter (cm) 1.829
Hole Diameter (mm) 18.29
Rod Diameter (inch) 0.37
Rod Diameter (cm) 0.94
Rod Diameter (mm) 9.4
Free Length (inch) 2.5
Free Length (cm) 6.35
Free Length (mm) 63.5
Rate (gm/mm) 7772.82
Rate (kg/cm) 77.728
Rate (kg/mm) 7.7728
Rate (lb/inch) 435.257
Rate (gm/cm) 77728.2
Rate (N/cm) 762.28
Rate (N/mm) 76.228
Solid Height (inch) 1.85
Solid Height (cm) 4.699
Solid Height (mm) 46.99
Wire Diameter (inch) 0.148
Wire Diameter (cm) 0.376
Wire Diameter (mm) 3.76
Material Music Wire
Load at Solid Height (gm) 128332
Load at Solid Height (kg) 128.332
Load at Solid Height (lb) 282.919
Load at Solid Height (N) 1258.49
Ends Squared and Ground
Active Coils 10.06
Direction of Wind Factory Option
Finish Zinc Plate and Bake per ASTM B633
Total Coils 12.06
0.148 0.688 0.015 0.015 0.72 0.37 2.5 0.088 12.06 435.257 43.526 1.85 282.919 0.148 2.5 0.688 3.76 17.48 0.38 18.29 9.4 63.5 2.235 76.228 46.99 1258.49

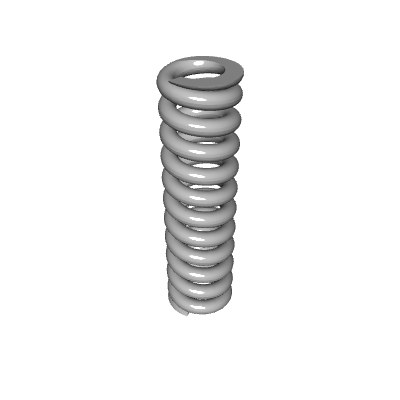

Default View

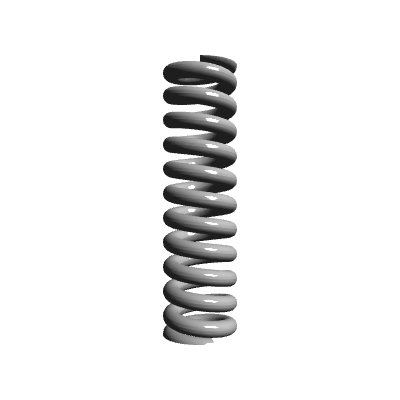

Side view

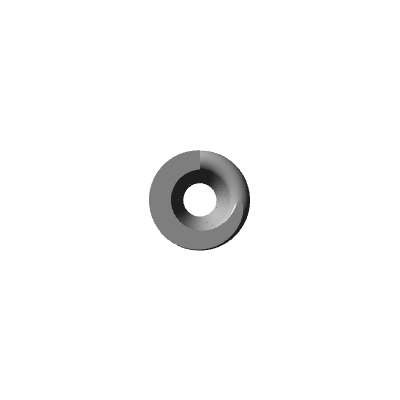

Top view
Quantity Price
1 - 19 $13.400
20 - 49 $8.360
50 - 99 $4.770
100 - 199 $3.160
200 - 299 $2.556
300 - 399 $2.405
400 - 499 $2.268
500 - 599 $2.148
600 - 699 $2.043
700 - 799 $1.954
800 - 899 $1.879
900 - 999 $1.817
1000 $1.774
